Quick & Simple
Our team can install these ground screws in a matter of minutes, enabling you to get your project out of the ground straight away without any waiting, any time of the year.
Less mess, less cost
A quick and clean alternative to messy concrete, no digging, no waste, no costly skips. Save money on the total cost of installing foundations.
Designed to last
Our ground screws are fully galvanised to protect against rusting. For added peace of mind, they are CE certified with our 20-year product guarantee and are BS EN 1461:2009 compliant.
Immediately load bearable
Suitable for a wide range of structures, our ground screws are immediately load bearing, so as soon as they are installed you can start building.
Permanent or temporary structures
Suitable for permanent or temporary structures and easily removable with no lasting pollutants left behind
Environmentally friendly
Reduced CO2 from pouring concrete. Helps protect habitats and prevent damage to tree root systems
No Heavy Equipment
The majority of our installations are completed using our handheld electrical installation machine meaning there is no need for heavy plant machinery which could leave lasting damage to your site
Lightweight & Compact
Using ground screws eliminates any access issues - Our ground screws, bracket systems and tools can all be carried by hand.
Reduced Disruption
The ground screw system minimises disruptions to your property, as it often involves less noise, debris, and disturbance compared to traditional foundation construction.

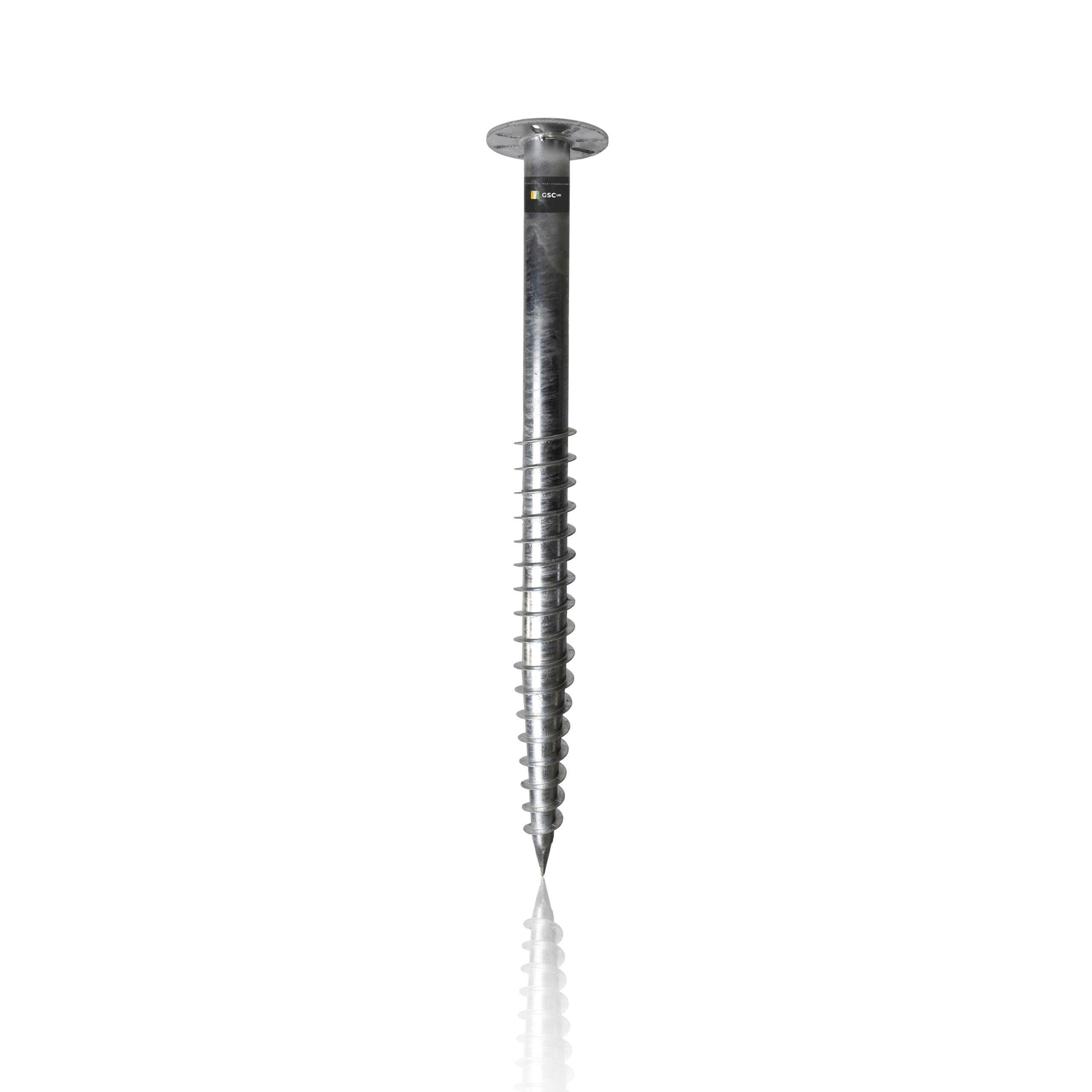

76mm x 1250mm Ground Screw
76mm x 1250mm Ground Screw
This product is not available to buy online.
If you would like more information on the product, or would like to purchase, please get in touch.
Enquire nowlength
1250mm
diameter
76mm
load capacity
1880kg
material
Galvanised Steel
wall thickness
3.0mm
The 1250mm ground screw can be installed quickly and with minimal impact to the environment using our specialist electrical installation machine as part of our Professional Installation Service. This ground screw features a 200mm round head and is suitable for most most garden and commercial applications.
Key Highlights
- Perfect for a variety of domestic & commercial applications
- Hassle-free installation with our electrical installation machine
- Hot Dip Galvanised Steel with BS EN 1461:2009 compliance
- CE approved with a 20-year product guarantee
- Compatible with a range of bracket systems and fixings
Load capabilities:
- Maximum Compression Load Capability – 1880kg (18.5kN)
- Maximum Tension Load Capability – 1070kg (10.5kN)
- Maximum Horizontal Load Capability – 460kg (4.5kn)
